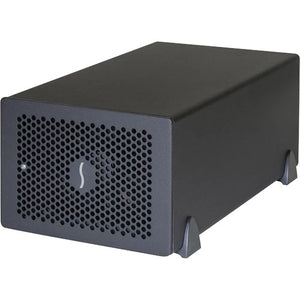

Connect three half-length, full-height PCIe cards to systems with a Thunderbolt 3 port using the Echo Express SE IIIe Thunderbolt 3 Expansion Chassis from Sonnet. The Echo Express SE IIIe is useful for expanding the connectivity of systems like the MacBook Pro, which does not have the PCIe slots needed for pros working in creative fields. Instead, the Echo Express SE IIIe connects to Thunderbolt 3 hosts to leverage this connectivity via PCIe expansion slots that are outside of the computer. This chassis has two PCIe 3.0 x8/x8 slots and one PCIe 3.0 x8/x4 slot. These three slots can support one half-length+ (up to 7.75" long), double-width, full-height PCIe x8 card, plus one single-width card, or three half-length+, full-height PCIe x8 cards for video capture, audio DSP, 6Gb or 12Gb SAS or SATA host bus adapters, 10Gb, 25Gb, or 40Gb Ethernet cards, RAID controllers, and more.
The Echo Express SE IIIe features two 40 Gb/s Thunderbolt 3 ports, one of which is used to connect to your host Windows, Mac, or Linux system and provides up to 100W of power. The second Thunderbolt 3 port, which provides up to 15W of power, can be used to daisy-chain up to 5 additional Thunderbolt devices, plus one 5K display at 60 Hz, two 4K displays at 60 Hz, or one USB 3.0 device. For power hungry cards, there is an additional internal 6-pin PCIe power connector.
Cool operations are driven by an internal 80 x 80 x 25mm cooling fan. Included with this chassis is a Thunderbolt 3 cable, a ThunderLok 3 retainer clip, a 120W universal power adapter, and a power cord. Protection is provided by a limited 2-year warranty and free lifetime technical support.
Please note that the Echo Express SE IIIe does not support GPUs. Also, two 4K displays requires a monitor with multi-stream transport support (DP out) or a Thunderbolt 3 to Dual DisplayPort Adapter.
