The UltraStudio 4K Mini Thunderbolt 3 from Blackmagic Design links your Thunderbolt 3 computer to any of a variety of video components for capture, playback, or streaming.
This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video via HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60.
A built-in LCD screen enables you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini's Thunderbolt 3 interface offers lightning-fast connections and will trickle-charge a connected computer.
Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.
The UltraStudio Mini 4K Thunderbolt 3 supports both compressed and uncompressed video, is Windows, macOS, and Linux compatible, and supports most popular codecs. The UltraStudio 4K Mini also supports 3D capture and playback via HDMI, plus 3D SDI playback at rates up to DCI 4K30.
The free version of DaVinci Resolve and the additional software are included via a QR code download. Power the UltraStudio Mini 4K Thunderbolt 3 via its internal 100-240 VAC adapter.
Thunderbolt 3 Connectivity
Lightning-fast Thunderbolt 3 connection with 45W power out for charging a connected laptop
Supports up to DCI 4K60 Video
8/10/12-bit HDR capture and playback with multi-rate -support from SD to DCI 4K60
Compact Design
Portable design with front-panel control buttons, LCD -with video, audio, and status information, XLR mic input, and an SD card slot
Supported Software
Including but not limited to:
DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop CC
Included Software
MacOS & Windows
DaVinci Resolve, Media Express
Disk Speed Test, LiveKey
Blackmagic Desktop Video Utility
Blackmagic driver
Linux
Media Express
Blackmagic Desktop Video Utility
Blackmagic driver
This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video via HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60.
A built-in LCD screen enables you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini's Thunderbolt 3 interface offers lightning-fast connections and will trickle-charge a connected computer.
Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.
The UltraStudio Mini 4K Thunderbolt 3 supports both compressed and uncompressed video, is Windows, macOS, and Linux compatible, and supports most popular codecs. The UltraStudio 4K Mini also supports 3D capture and playback via HDMI, plus 3D SDI playback at rates up to DCI 4K30.
The free version of DaVinci Resolve and the additional software are included via a QR code download. Power the UltraStudio Mini 4K Thunderbolt 3 via its internal 100-240 VAC adapter.
Thunderbolt 3 Connectivity
Lightning-fast Thunderbolt 3 connection with 45W power out for charging a connected laptop
Supports up to DCI 4K60 Video
8/10/12-bit HDR capture and playback with multi-rate -support from SD to DCI 4K60
Compact Design
Portable design with front-panel control buttons, LCD -with video, audio, and status information, XLR mic input, and an SD card slot
Supported Software
Including but not limited to:
DaVinci Resolve
Fusion
Final Cut Pro X
Adobe Premiere Pro CC
Avid Media Composer
Adobe After Effects CC
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop CC
Included Software
MacOS & Windows
DaVinci Resolve, Media Express
Disk Speed Test, LiveKey
Blackmagic Desktop Video Utility
Blackmagic driver
Linux
Media Express
Blackmagic Desktop Video Utility
Blackmagic driver

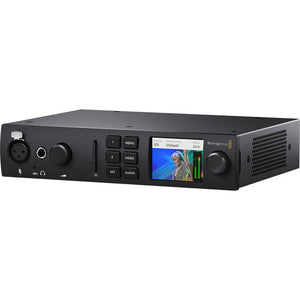

Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
QR Code for Software Download
Limited 3-Year Manufacturer Warranty
