To top their previous achievement with the Pocket Cinema Camera 6K, Blackmagic Design adds an even more full-featured, compact Super35 camera to their cine-style line with the Pocket Cinema Camera 6K Pro.
The 6K Pro features all the recording features, sensor, dynamic range, buttons, and ports as its predecessor, and adds a variety of important new features such as a 5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness, a Pro EVF option, built-in clear/2/4/6-stop ND filters, dual mini-XLR inputs, an accurate timecode clock, an NP-F570 L-series battery slot, and updated Gen 5 color science.
With only a slightly larger form factor than the 6L, the 6K Pro records the same resolutions up to 50 fps 6144 x 3456 video, and it retains the valuable active Canon EF mount, letting users take advantage of the expansive array of EF/EF-S mount lenses available. The EF mount supports iris, autofocus, and zoom functions using electronic communication when using compatible lenses.
The 6K Pro can turn one frame into two by cropping a second shot from one frame, upscaling to 8K, or simply capturing rich, detailed footage with your favorite EF/EF-S-mount lens. The updated Gen 5 internal color processing makes it easy to intercut 6K Pro, 6K, and BMPCC 4K footage. Record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming, or output via the USB Type-C port to capture longer clips to an external SSD. The 6K Pro includes a DaVinci Resolve Studio license and supports Blackmagic Raw capture from the sensor. Using the Raw format with the sensor's metadata simplifies editing to suit any project and makes editing easier with DaVinci Resolve.
The compact 6K Pro retains the familiar controls and menu layout of the 6K model, such as ISO support up to 25,600, 13 stops of dynamic range, and 1920 x 1080 HDR monitor output. Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.
Additional pro features include lens metadata support, 3D LUT application for both monitoring and recording, up to 21.2MP still image capture, and a multifunction grip that enables single-handed operation. Sync multiple cameras for a concert, event, or other multicamera shoots by linking an external timecode generator to the 6K Pro internal timecode generator (accessed via the 3.5mm audio port). Then save valuable time by using Resolve to automatically sync your multicamera shots in post.
In addition to the DaVinci Resolve Studio activation key, the 6K Pro comes with a 30W power supply offering simultaneous battery charging, an MP-F570 battery, a lens port cap, and a camera strap. Optional accessories designed specifically for the 6K Pro include the BMPCC Pro EVF and BMPCC Pro Battery Grip, available separately.
New 6K Pro Features
5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness
Built-in clear/2/4/6-stop IR ND filters
Dual mini-XLR inputs
Electronic lens communication with iris, autofocus, and zoom control available with compatible lenses
Super-accurate timecode clock
NP-F570 L-series battery slot
Updated Gen 5 color science
Optional Pro EVF and battery grip
Features
Active Canon EF Lens Mount
Choose from a wide array of Canon EF/EF-S-mount lenses and automatically populate lens metadata with compatible lenses
Super35 Image Sensor / Dual Native ISO
The 6K Pro camera uses a Super35-size sensor, 13 stops of dynamic range, and a dual native ISO up to 25,600 to capture rich images at resolutions up to 6144 x 3456 up to 50 fps
Blackmagic Raw and ProRes Options
Capture in Blackmagic Raw or ProRes 422 options depending on your project's needs
Up to 6K Shooting Resolutions
Multiple resolutions include 6144 x 3456 (6K), 6144 x 2560 (6K 2.4:1), 5744 x 3024 (5.7K 17:9), 4096 x 2160 (4K DCI), 1920 x 1080 (HD), and more
Versatile Media Capture Options
Record internally to CFast 2.0 or SD/UHS-II card slots, or capture longer clips using the USB Type-C output to an external SSD DaVinci Resolve Studio License Included
The 6K Pro is compatible with DaVinci Resolve and includes an activation key for Resolve Studio
The 6K Pro features all the recording features, sensor, dynamic range, buttons, and ports as its predecessor, and adds a variety of important new features such as a 5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness, a Pro EVF option, built-in clear/2/4/6-stop ND filters, dual mini-XLR inputs, an accurate timecode clock, an NP-F570 L-series battery slot, and updated Gen 5 color science.
With only a slightly larger form factor than the 6L, the 6K Pro records the same resolutions up to 50 fps 6144 x 3456 video, and it retains the valuable active Canon EF mount, letting users take advantage of the expansive array of EF/EF-S mount lenses available. The EF mount supports iris, autofocus, and zoom functions using electronic communication when using compatible lenses.
The 6K Pro can turn one frame into two by cropping a second shot from one frame, upscaling to 8K, or simply capturing rich, detailed footage with your favorite EF/EF-S-mount lens. The updated Gen 5 internal color processing makes it easy to intercut 6K Pro, 6K, and BMPCC 4K footage. Record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming, or output via the USB Type-C port to capture longer clips to an external SSD. The 6K Pro includes a DaVinci Resolve Studio license and supports Blackmagic Raw capture from the sensor. Using the Raw format with the sensor's metadata simplifies editing to suit any project and makes editing easier with DaVinci Resolve.
The compact 6K Pro retains the familiar controls and menu layout of the 6K model, such as ISO support up to 25,600, 13 stops of dynamic range, and 1920 x 1080 HDR monitor output. Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.
Additional pro features include lens metadata support, 3D LUT application for both monitoring and recording, up to 21.2MP still image capture, and a multifunction grip that enables single-handed operation. Sync multiple cameras for a concert, event, or other multicamera shoots by linking an external timecode generator to the 6K Pro internal timecode generator (accessed via the 3.5mm audio port). Then save valuable time by using Resolve to automatically sync your multicamera shots in post.
In addition to the DaVinci Resolve Studio activation key, the 6K Pro comes with a 30W power supply offering simultaneous battery charging, an MP-F570 battery, a lens port cap, and a camera strap. Optional accessories designed specifically for the 6K Pro include the BMPCC Pro EVF and BMPCC Pro Battery Grip, available separately.
New 6K Pro Features
5" tilting HDR capacitive touchscreen LCD with 1500 cd/m² brightness
Built-in clear/2/4/6-stop IR ND filters
Dual mini-XLR inputs
Electronic lens communication with iris, autofocus, and zoom control available with compatible lenses
Super-accurate timecode clock
NP-F570 L-series battery slot
Updated Gen 5 color science
Optional Pro EVF and battery grip
Features
Active Canon EF Lens Mount
Choose from a wide array of Canon EF/EF-S-mount lenses and automatically populate lens metadata with compatible lenses
Super35 Image Sensor / Dual Native ISO
The 6K Pro camera uses a Super35-size sensor, 13 stops of dynamic range, and a dual native ISO up to 25,600 to capture rich images at resolutions up to 6144 x 3456 up to 50 fps
Blackmagic Raw and ProRes Options
Capture in Blackmagic Raw or ProRes 422 options depending on your project's needs
Up to 6K Shooting Resolutions
Multiple resolutions include 6144 x 3456 (6K), 6144 x 2560 (6K 2.4:1), 5744 x 3024 (5.7K 17:9), 4096 x 2160 (4K DCI), 1920 x 1080 (HD), and more
Versatile Media Capture Options
Record internally to CFast 2.0 or SD/UHS-II card slots, or capture longer clips using the USB Type-C output to an external SSD DaVinci Resolve Studio License Included
The 6K Pro is compatible with DaVinci Resolve and includes an activation key for Resolve Studio

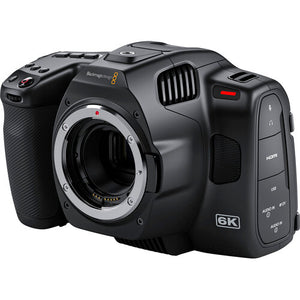

Blackmagic Design Pocket Cinema Camera 6K Pro (Canon EF)
Lens Port Cap
Camera Strap
Power Supply with International Adapters (30W)
L-Series NP-F570 Battery
DaVinci Resolve Studio Activation Key
Limited 1-Year Manufacturer Warranty
Imaging
Lens Mount Canon EF
Lens Communication Yes, with Autofocus Support
Sensor Resolution Effective: 21.2 Megapixel (6144 x 3456)
Sensor Type 23.1 x 12.99 mm (Super35) CMOS
Image Stabilization None
Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Internal Filter Holder No
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Rolling Shutter
ISO Sensitivity 100 to 25,600
Shutter Angle 5 to 360°
Advertised Dynamic Range 13 Stops
Video Capture
Internal Recording Modes ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT
DCI 4K (4096 x 2160) up to 60.00 fps
UHD 4K (3840 x 2160) up to 60.00 fps
1920 x 1080p up to fps
Blackmagic RAW
6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 Mb/s]
6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps [37 to 359 Mb/s]
5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps [40 to 395 Mb/s]
4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 Mb/s]
3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 Mb/s]
2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 Mb/s]
External Recording Modes 4:2:2 10-Bit via HDMI
1920 x 1080p
Raw via USB
6144 x 3456 at 23.98/24.00/25/29.97/50 fps
6144 x 2560 at 23.98/24.00/25/29.97/50/59.94 fps
5744 x 3024 at 23.98/24.00/25/29.97/50/59.94 fps
Sensor Crop While Recording 6K (6144 x 2560) in 2.4:1 When Recording in Raw
5744 x 3024 When Recording in Raw
4K (4096 x 2160) When Recording in Raw
3728 x 3104 When Recording in Raw
2868 x 1512 When Recording in Raw
Fast-/Slow-Motion Support Yes
Built-In Microphone Type Stereo
IP Streaming Yes
Still Image Capture
Image File Format DNG
Interface
Media/Memory Card Slot Slot 1: SD/SDHC/SDXC (UHS-II)
Slot 2: CFast
Video I/O 1 x HDMI Output
Audio I/O 2 x Mini XLR Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O 1 x Weipu SF610/S2 (12 to 20 VDC) Input
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Output
1 x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input)
Wireless Bluetooth Control
Global Positioning (GPS, GLONASS, etc.) None
Monitor
Size 5"
Resolution 1920 x 1080
Display Type Tilting Touchscreen LCD
Type Optional, Not Included
Focus
Focus Type Auto and Manual Focus
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
General
Battery Type Sony L-Series
Tripod Mounting Thread 2 x 1/4"-20 Female
Accessory Mount 1 x 1/4"-20 Female
Material of Construction Carbon Fiber
Dimensions (W x H x D) 7.08 x 4.41 x 4.84" / 179.83 x 112.01 x 122.94 mm
Weight 2.73 lb / 1.24 kg
Packaging Info
Package Weight 4.61 lb
Box Dimensions (LxWxH) 10.5 x 7.8 x 7.1"
