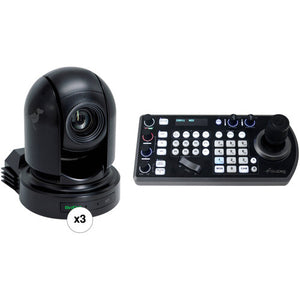

  • BirdDog Eyes P200 PTZ Kit with 3 x NDI Cameras and PTZ Keyboard (Black)


    No reviews
    Regular price $8,397.00
    Unit price
    Shipping calculated at checkout.

    This is a special-order product not readily available in store. Please email install@voiceandvideosales.com with any inquiries.

    Key Features

    • For Corporate/House of Worship/Education
    • 3 x NDI/SDI/HDMI PTZ Cameras, 30x Zoom
    • PTZ Keyboard Controller with Joystick
    • Stream up to 1080p60 Video
    • P200 Cameras are Black Color

    Set up a multi-camera streaming video production from a large outdoor venue, remote learning site, or house of worship using this BirdDog Eyes P200 PTZ Kit. The kit includes three Eyes P200 PTZ cameras and a PTZ keyboard controller.

    The three black PTZ cameras support up to 1080p60 input and streaming video and have a 30x optical zoom. It features 3G-SDI, HDMI, and NDI outputs, offering options for your video streams and recordings or for displaying your video on a monitor or projector. The NDI platform allows you to easily integrate your cameras into a local network for streaming to the internet. The PTZ keyboard allows you to remotely control all of the functions of your cameras such as exposure, gain, shutter, focus, zoom, and iris, and you can control the camera moves using the joystick. Read more about the items in this kit below.

    BirdDog Eyes P200 1080p Full NDI PTZ Camera

    Combining BirdDog's custom NDI silicon chip, 30x optical zoom, and Sony backlit sensor and image module, the BirdDog Eyes P200, in black, is a full NDI 1080p60 PTZ camera designed for large indoor spaces. Thanks to the fast autofocus and zoom ensured by the true Sony image module, the P200 is highly suitable for catching all the fast action in places such as sporting events. As opposed to other types of NDI, such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P200 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.

    Simultaneous, live SDI, HDMI, and full NDI outputs complete the camera as a comprehensive solution. Between these connections, you can control the P200 live via your full NDI workflow or integrate RS-422, RS-485, and RS-232 serial control. Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode. The P200 can be powered by Power-over-Ethernet (PoE) or via the included power adapter.

    The Eyes P200 also comes with the BirdDog Comms Lite audio intercom software, which supports up to four BirdDog devices. Comms Lite is Windows-compatible and offers features such as director push to talk, mute camera operator, auto-detect NDI sources, monitor camera audio, and shortcut to Web console. For a more complete version of the application, an optional upgrade is available to Comms Pro. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to HDMI or SDI.

    Key Features

    • Fast 30x optical zoom and autofocus thanks to the use of a true Sony image module
    • Highly suitable for capturing the fast action in sporting events
    • Designed for large indoor spaces such as sports stadiums, school auditoriums, and large meeting rooms
    • BirdDog custom NDI silicon chip; up to 140 Mb/s 1080p60 full NDI
    • Sony backlit sensor
    • Simultaneous, live SDI, HDMI, full NDI, and CVBS outputs
    • NDI and RS-422/RS-485/RS-232 control via dedicated RJ45 ports
    • Optional BirdDog PTZ Keyboard supported
    • Image stabilizer function when zoom is set to 30x ensures less screen blur
    • True WDR 130 dB
    • 128 presets at speeds up to 150°/sec (up to six presets can be stored in the included remote control
    • Audio input and output support with NDI streaming
    • Powered via Power-over-Ethernet (PoE) or the included power adapter
    • Includes BirdDog Comms Lite audio intercom software (Windows)

    BirdDog PTZ Keyboard

    Control up to 255 PTZ cameras on a single network with the ergonomically designed BirdDog PTZ Keyboard. The keyboard is compatible with NDI, NDI|HX, Visca over IP, RS-422, and RS-232 protocols, and can also be powered over those same connections as an alternative to DC-in power.

    The keyboard features multi-colored and programmable buttons and knobs, and it has a joystick and rocker for zoom control. Control your PTZ camera's exposure, white balance, backlight, gain, shutter, focus, iris, shutter speed, and zoom with the touch of a button or the turn of a knob. You can also set up to 256 memory presets with different parameters and camera moves. The PTZ Keyboard is also compatible with NDI and BirdDog Comms Audio Intercom systems run from a Windows computer.

    Universal Control

    The PTZ Keyboard features NDI and NDI|HX, Visca over IP, RS-422, and RS-232 support for control over PTZ cameras


    Buttons and controls include exposure, focus, PT speed, zoom, shutter speed, iris, white balance, compensation, multi-colored buttons for visual cues, 256 memory presets for parameters and camera moves, and more


    Control over 255 PTZ cameras on a single network


    The keyboard's button layout allows you to quickly access all the cameras on the network and set up quick access buttons for all your favorite settings such as exposure, focus, zoom, and movement speeds


    Flexible options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or over the serial port


    The PTZ Keyboard offers Audio Intercom support over NDI and is compatible with BirdDog Comms. Comms is a complete Audio Intercom solution which can run on any Windows 10 compatible computer, laptop, or surface for a touchscreen experience
     3 x BirdDog Eyes P200 1080p Full NDI PTZ Camera (Black)
    Power Adapter
    Power Cord
    IR Remote Controller (Required CR2032 Coin Battery Not Included)
    Bag of Mounting Screws
    RJ45 to RS-232 Extension Cable
    RJ45 to RS-422 Extension Cable
    Limited 1-Year Manufacturer Warranty
    BirdDog PTZ Keyboard
    Limited 1-Year Manufacturer Warranty
    Registration Extension: 3-Year (US Only)
